Post 07 - Asbestos Pleural Disease with Tuberculosis

When two diseases coexist

Bhavin Jankharia

26 Apr 2026

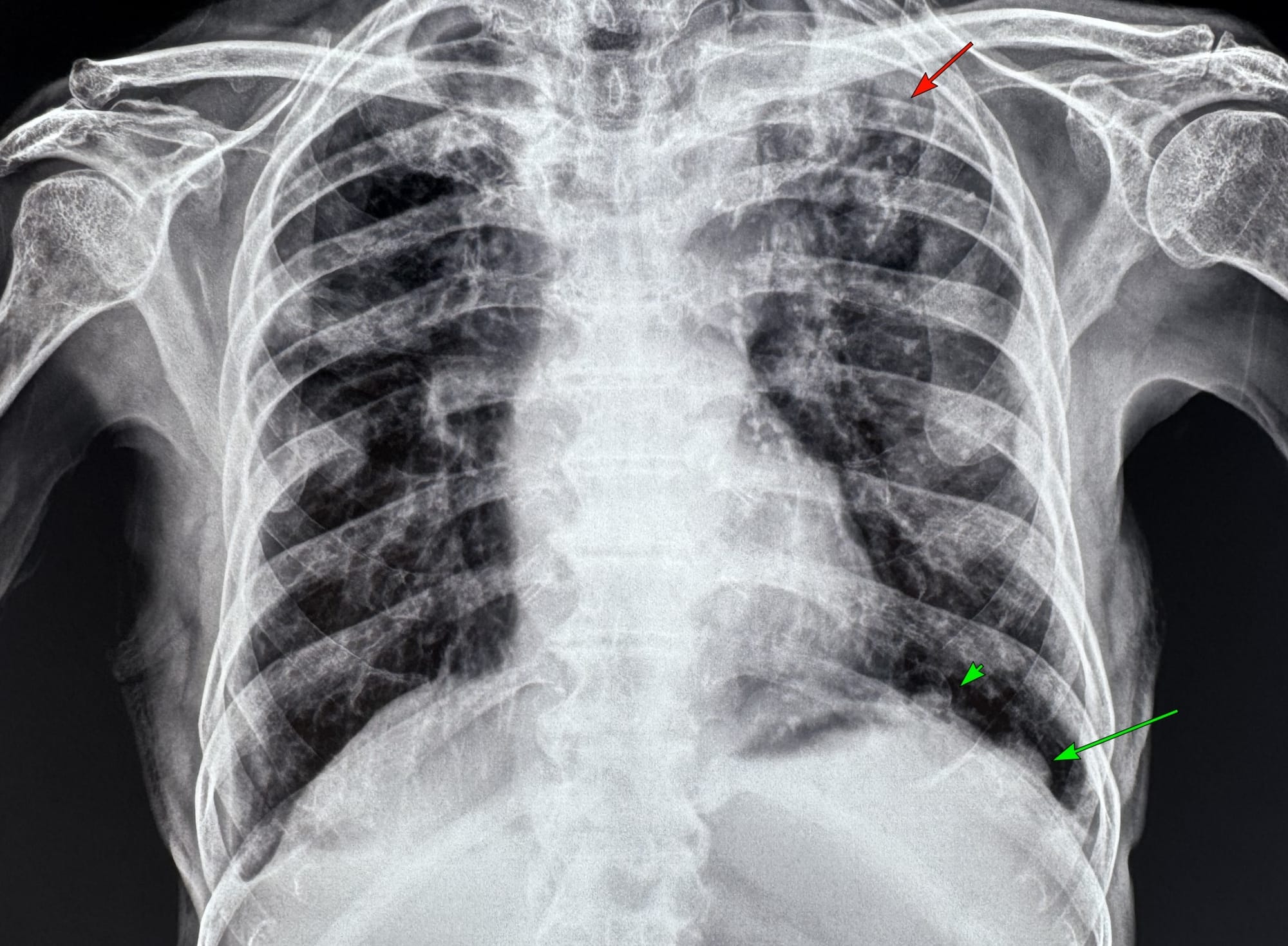

77-year-old man presented for an opinion with pleural plaques (green arrows) and upper lobe fibronodular lesions (red arrow) on a radiograph

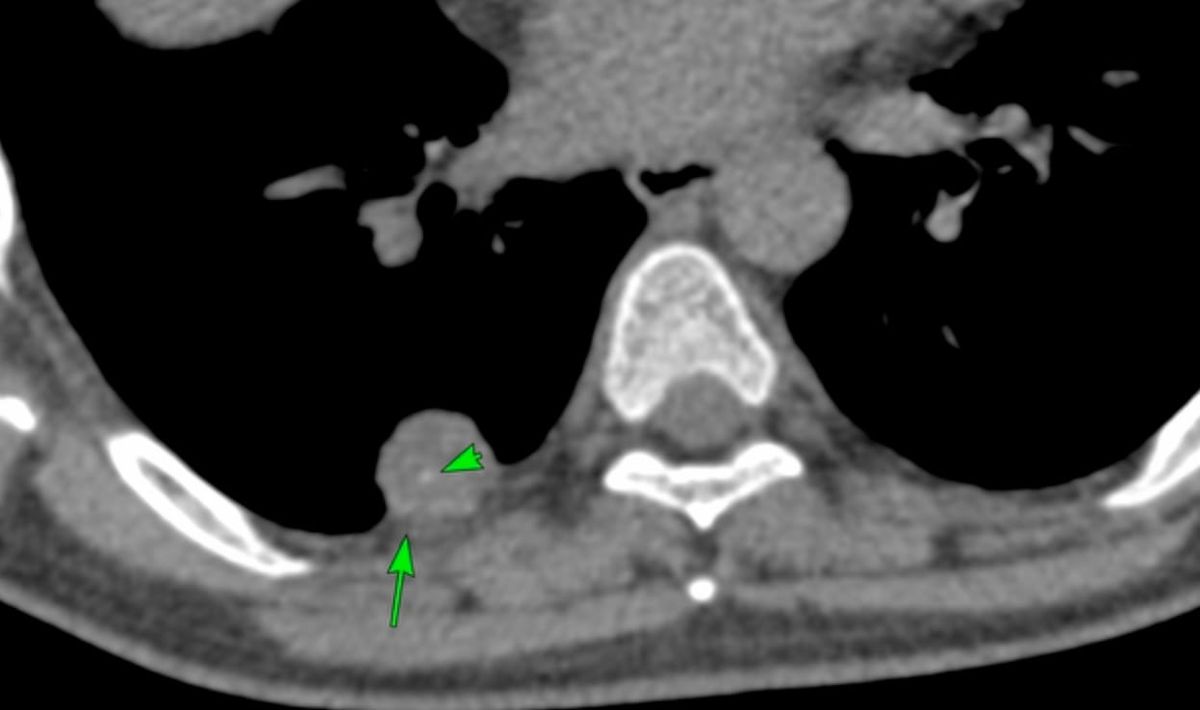

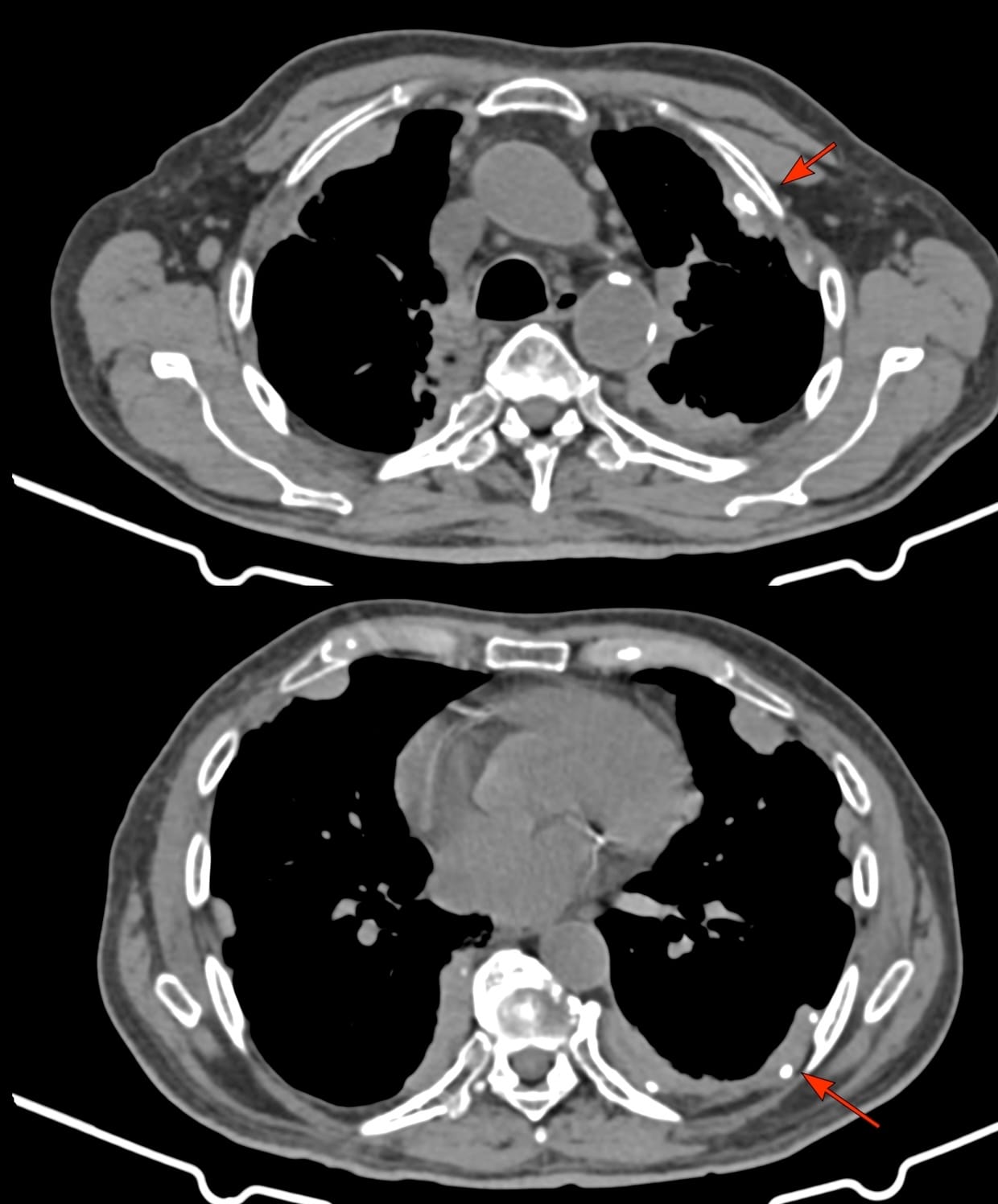

The CT scan showed extensive pleural plaques (arrows), some calcified, some not.

This is characteristic asbestos exposure related pleural disease.

On extensive questioning, the son said that he worked for almost 30 years, from age 25 in the ship building and ship breaking industry which confirmed the asbestos exposure.

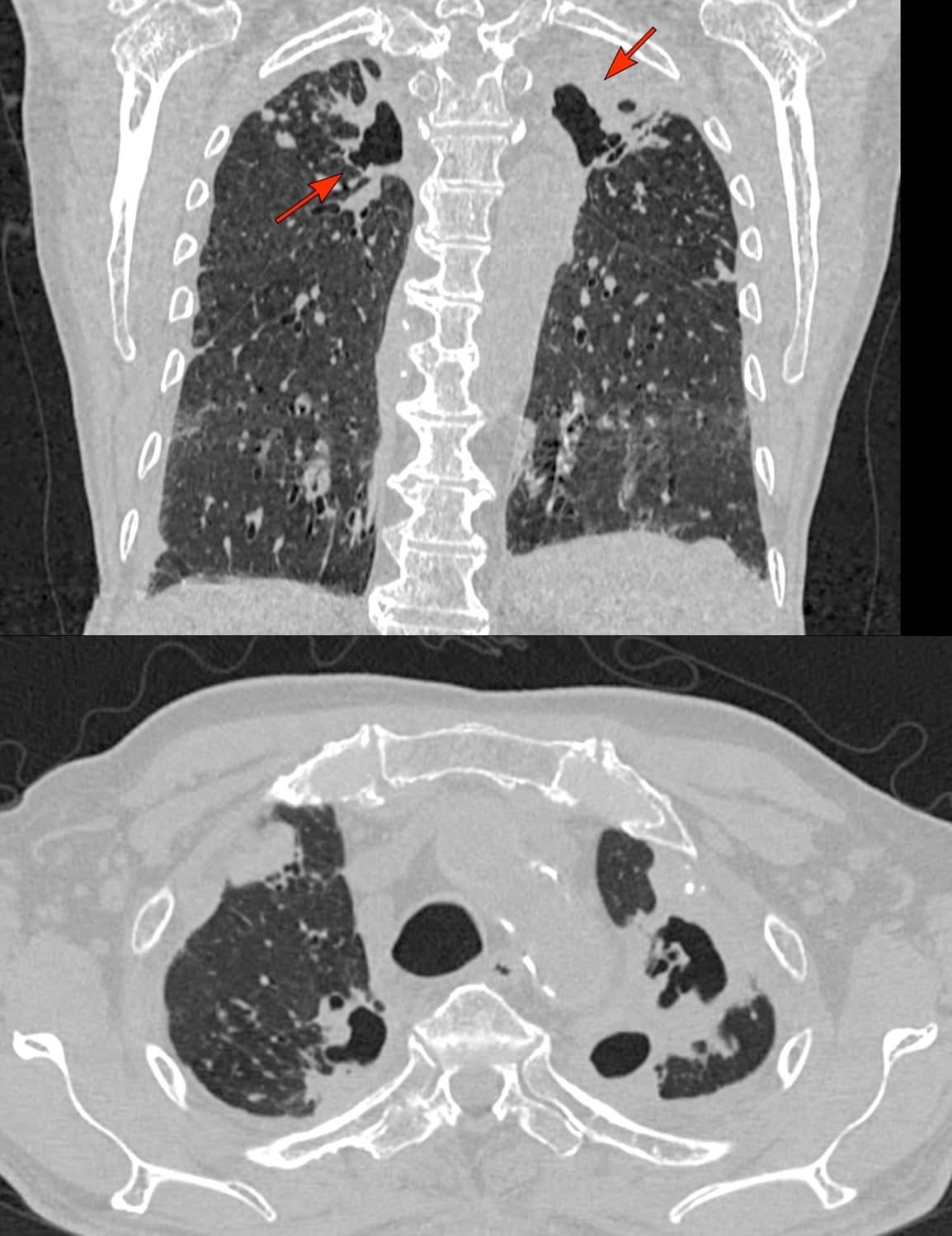

He also had coexistent resolving tuberculosis (on AKT) with fibrocystic and fibrocavitary lesions in the upper lobes (arrows).

More about Asbestosis

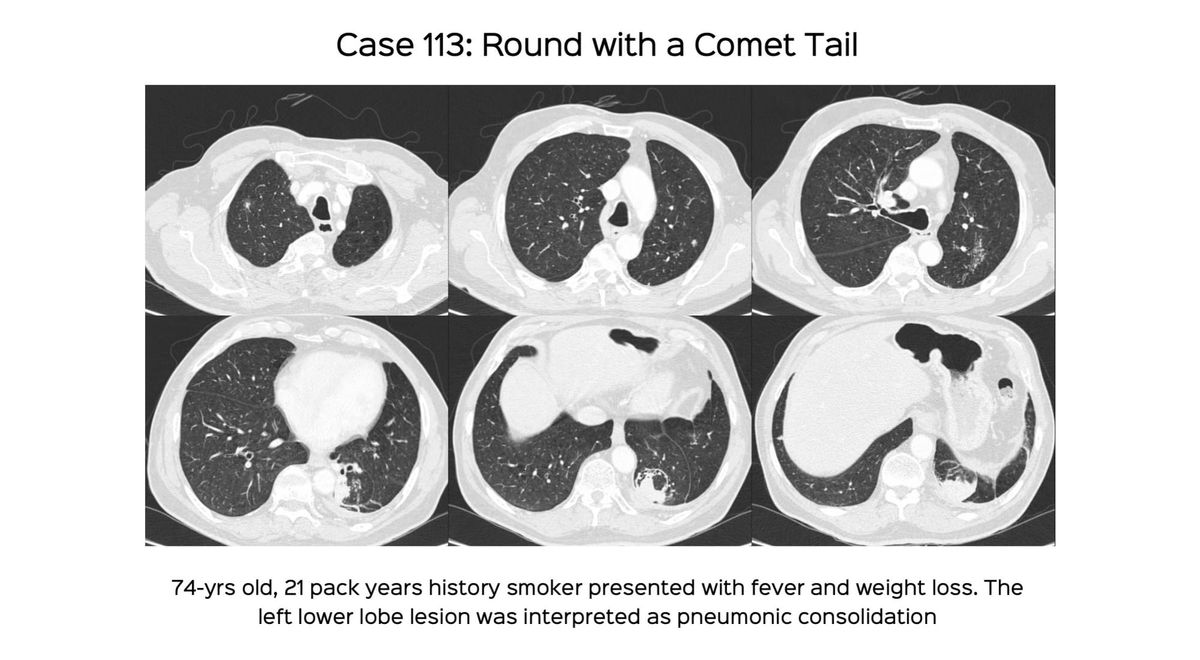

Case 113: 74-years old - asbestos exposure - pleural plaques with rounded atelectasis

Case of the Day 095: 55-years old - asbestos exposure - early/mild asbestosis with subpleural bands/lines

Case of the Day 112: 82-years old - asbestos exposure - calcified pleural plaques
